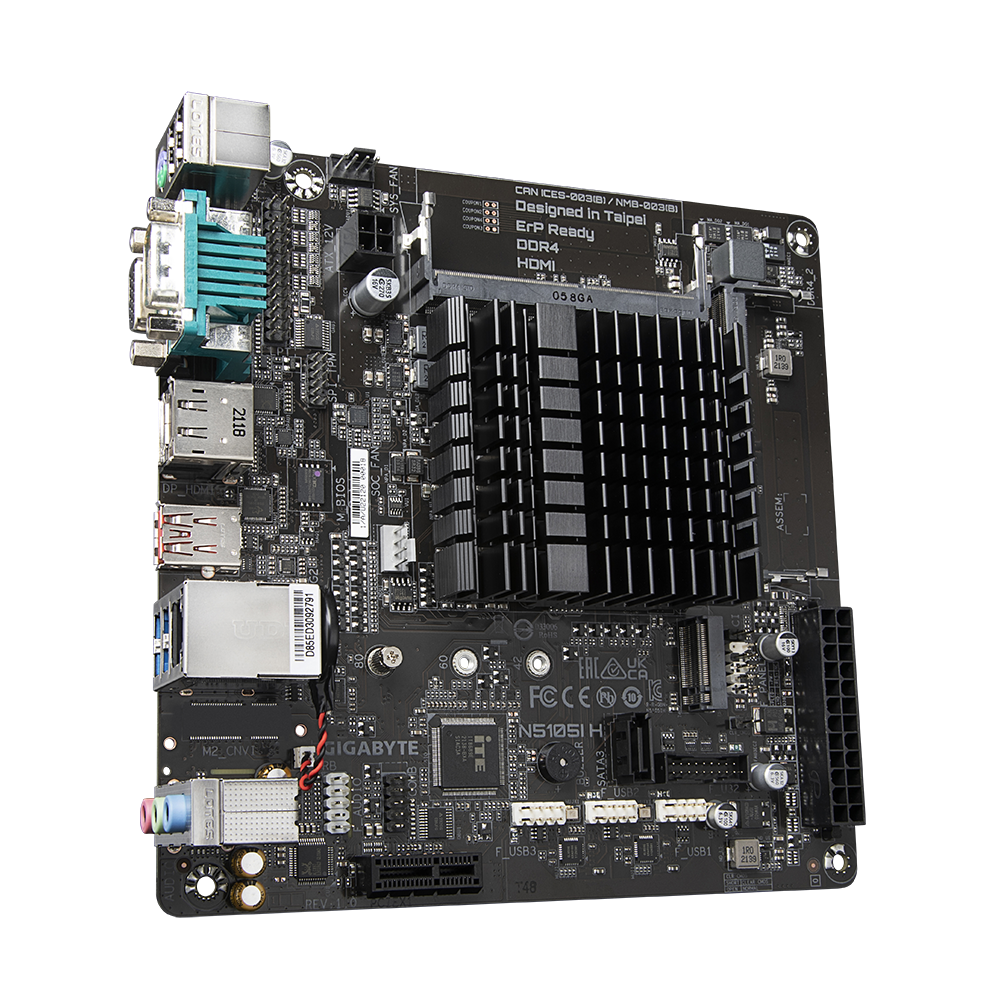

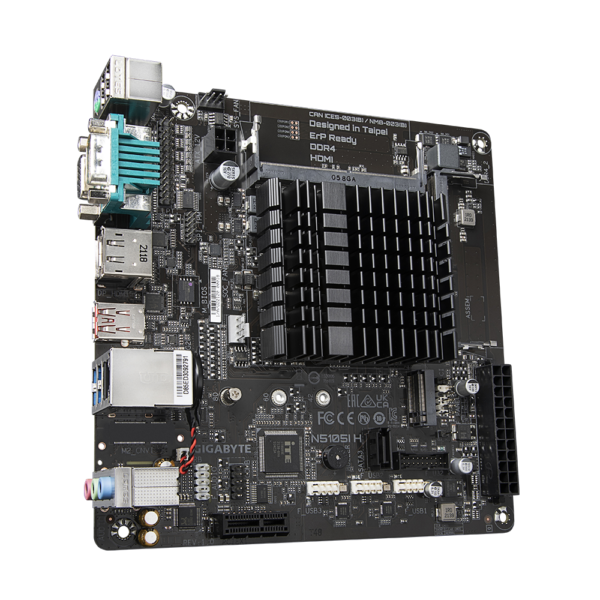

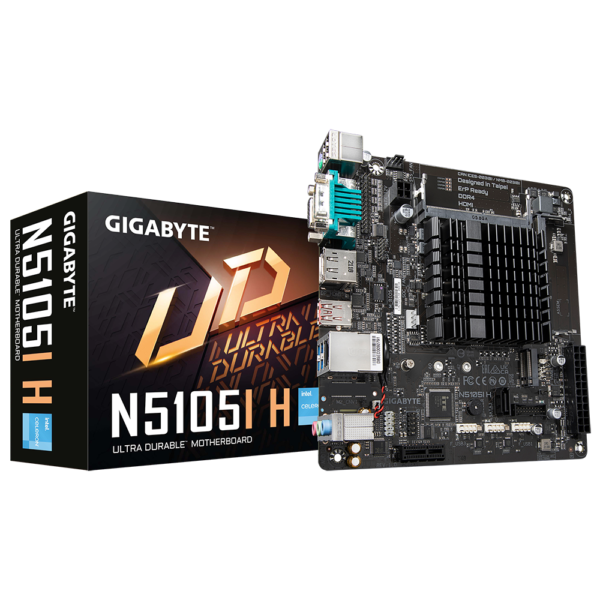

MOTHER GIGABYTE N5105I H Mother+CPU+Video c/Puerto Serie



Depósito / Transferencia Bancaria



Pago con tarjetas



Retirá gratis en oficina

Envios a todo el pais con OCA

Envío CABA y GBA:

*Los costos de envio pueden variar en base a las dimensiones y/o cantidad de bultos o mal tiempo.

Agotado

Descripción
  • CPU
    1. Built in with an Intel® Quad-Core Celeron® N5105 SoC (2.0 GHz)
      * Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.
    2. 4 MB L3 Cache
  • Memory
    1. 2x DDR4 SO-DIMM sockets supporting up to 16 GB of system memory
      * If only one memory module is to be installed, be sure to install it in the DDR4_1 socket.
    2. Dual channel memory architecture
    3. Support for DDR4 2933/2666/2400/2133 MHz memory modules
    4. Support for non-ECC memory modules

    (Please refer “Memory Support List” for more information.)

  • Onboard Graphics

    Integrated Graphics Processor-Intel® HD Graphics support:

    1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
    2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
      * Support for HDMI 2.0 version and HDCP 2.3.
    3. 1 x DisplayPort, supporting a maximum resolution of 4096×2160@60 Hz
      * Support for DisplayPort 1.2 version and HDCP 2.3

    (Graphics specifications may vary depending on CPU support.)

  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
  • LAN
    1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)
  • Expansion Slots
    1. 1 x PCI Express x1 slot
      (The PCI Express x1 slot conforms to PCI Express 3.0 standard.)
  • Storage Interface

    Integrated in the SoC:

    1. 1 x SATA 6Gb/s connector
    2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)
  • USB

    Integrated in the SoC:

    1. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    2. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

    Chipset+2 USB 2.0 Hubs:

    1. 8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x SOC fan header
    4. 1 x system fan header
    5. 1 x SATA 6Gb/s connector
    6. 1 x front panel header
    7. 1 x front panel audio header
    8. 1 x USB 3.2 Gen 1 header
    9. 3 x USB 2.0/1.1 headers
    10. 1 x serial port header
    11. 1 x parallel port header
    12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    13. 1 x chassis intrusion header
    14. 1 x Clear CMOS jumper
    15. 1 x buzzer

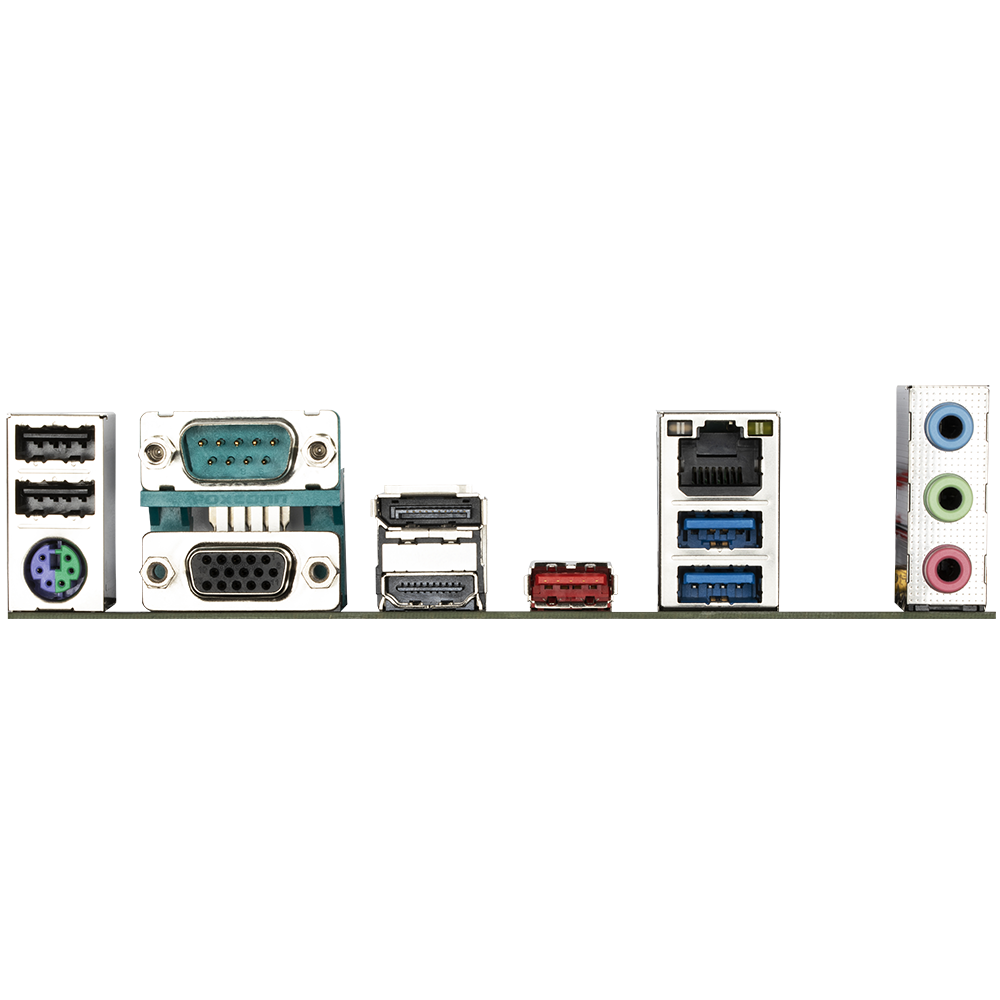

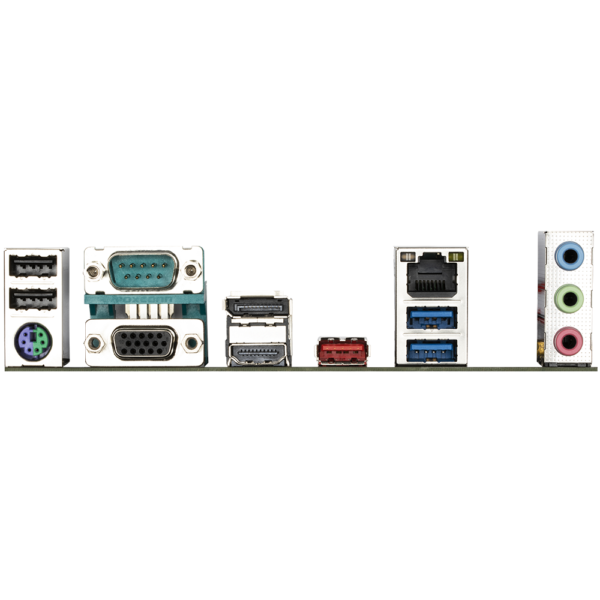

  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x serial port header
    3. 1 x D-Sub port
    4. 1 x HDMI 2.0 port
    5. 1 x DisplayPort
    6. 2 x USB 3.2 Gen 1 ports
    7. 1 x USB 3.2 Gen 2 Type-A port (red)
    8. 2 x USB 2.0/1.1 ports
    9. 1 x RJ-45 port
    10. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for Xpress Install
    2. Support for @BIOS
    3. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • Bundled Software
    1. Norton® Internet Security (OEM version)
  • Operating System
    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Form Factor
    1. Mini-ITX Form Factor; 17.0cm x 17.0cm

Última actualización 27/06/2024 09:27:58
