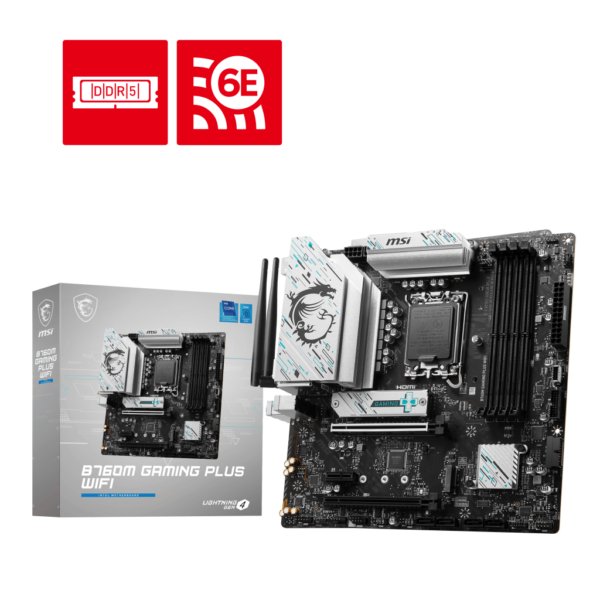

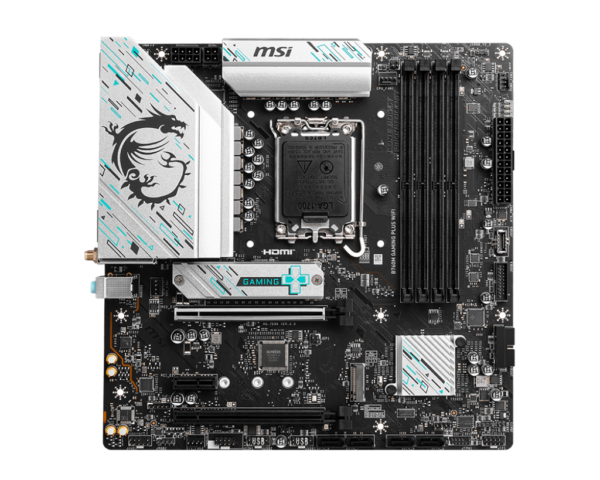

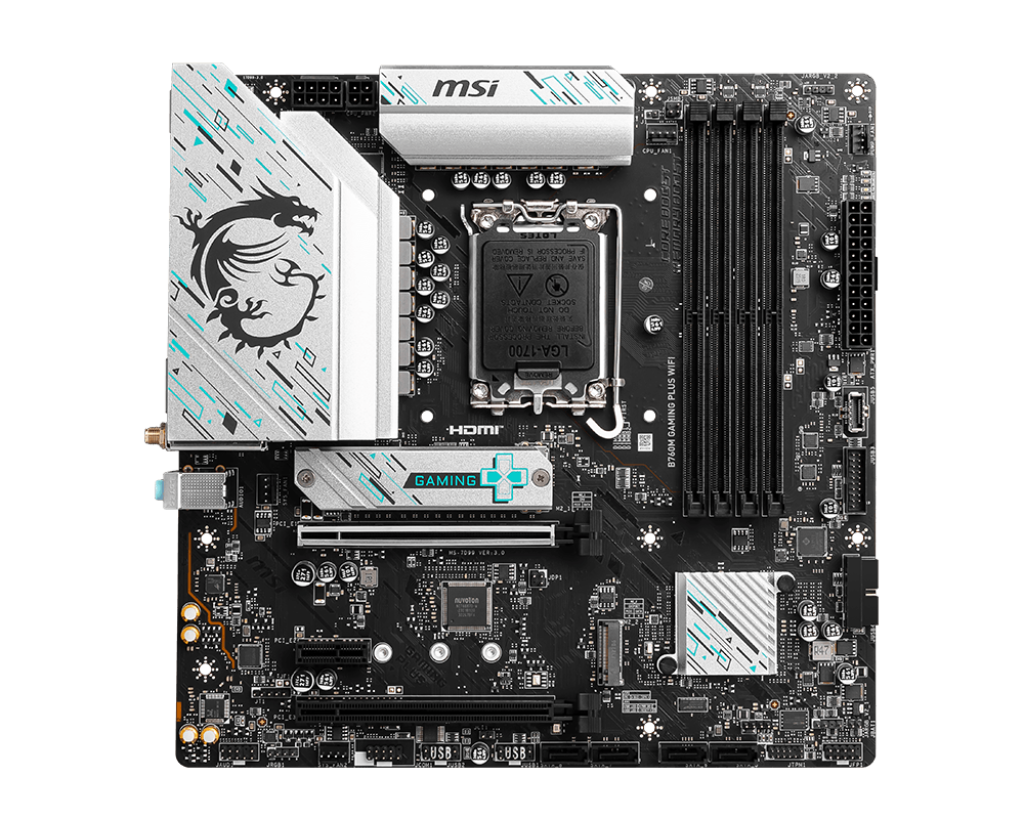

• Model Name B760M GAMING PLUS WIFI
• CPU Support Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel®
  Pentium® Gold and Celeron® Processors
• CPU Socket LGA 1700
• Chipset Intel® B760 Chipset
• Expansion Slots 2x PCIe 4.0 x16 slots, 1x PCIe 3.0 x1 slot
• Display Interface Support 4K@60Hz as specified in HDMI™ 2.1,
  DisplayPort 1.4 – Requires Processor Graphics
• Memory Support 4 DIMMs, Dual Channel DDR5-6800+MHz(OC)
• Storage 2x M.2 Gen4 x4 64Gbps slots,
  4x SATA 6Gbps ports
• USB ports 2x USB 3.2 Gen 2 10Gbps (2 Type-A),
  7x USB 3.2 Gen 1 5Gbps (6 Type-A + 1 Type-C),
  6x USB 2.0
• LAN Realtek® RTL8125BG 2.5Gbps LAN
• WiFi / BT Intel® Wi-Fi 6E, Bluetooth 5.3
• Audio 8-Channel (7.1) HD Audio with Audio Boost

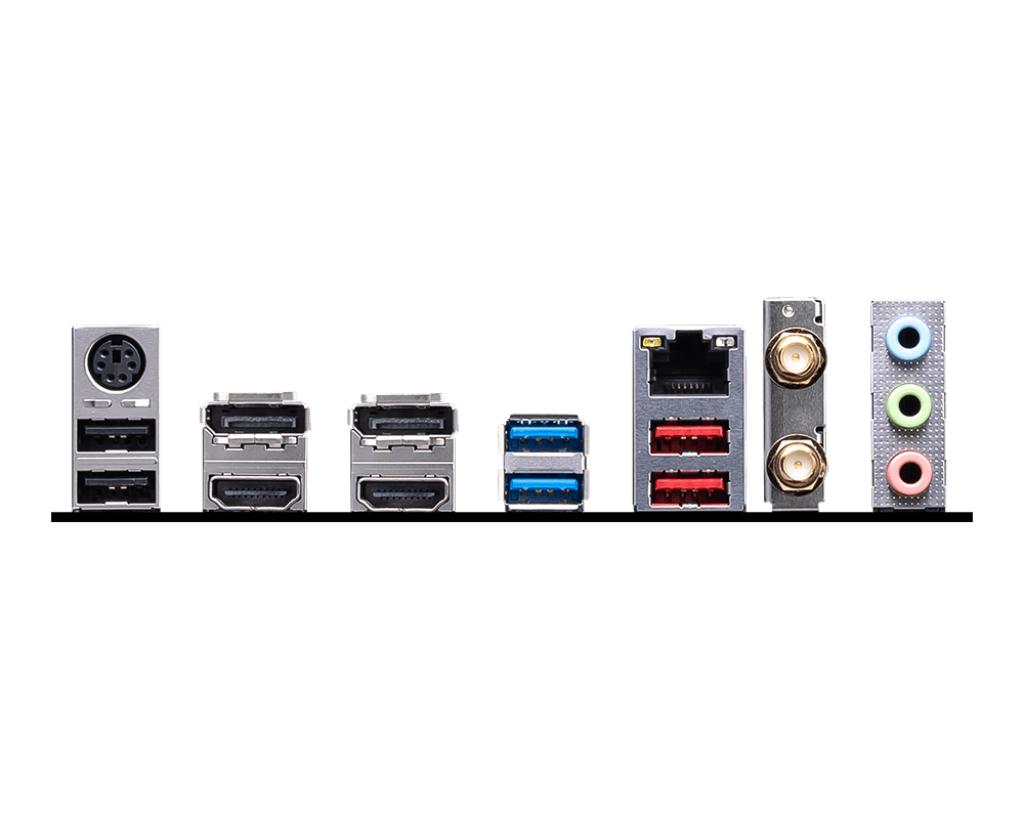

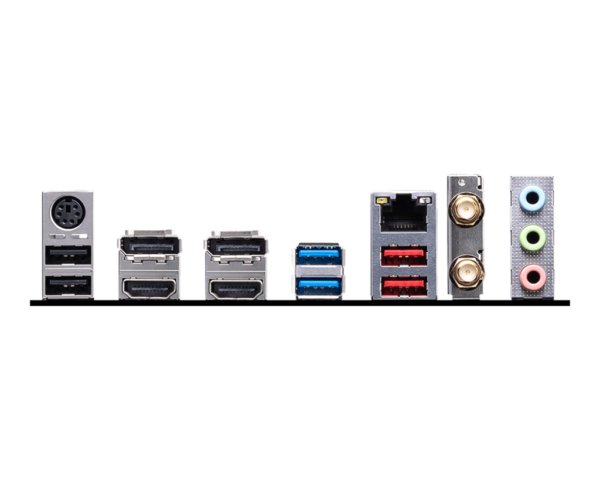

• CONNECTIONS

1. Keyboard / Mouse
2. USB 3.2 Gen 1 5Gbps (Type-A)
3. Wi-Fi / Bluetooth
4. HDMI™
5. Audio Connectors
6. Display Port
7. 2.5G LAN
8. USB 2.0 (Type-A)
9. USB 3.2 Gen 2 10Gbps (Type-A)
