• Model Name B860M GAMING PLUS WIFI
• CPU Support Supports Intel® Core™ Ultra Processors (Series 2)
• CPU Socket LGA 1851
• Chipset Intel® B860 Chipset
• Expansion Slots 1 x PCIe 5.0 x16 slot,
  1 x PCIe 4.0 x16 slot,
  2 x PCIe 4.0 x1 slots
• Display Interface Thunderbolt™ 4 (Type-C),
  Support 4K@60Hz as specified in HDMI™ 2.1,
  DisplayPort 1.4 HBR2 – Requires Processor Graphics
• Memory Support 4 DIMMs, Dual Channel DDR5 – 8800+ MT/s (OC)
• Storage 1 x M.2 Gen5 x4 128Gbps slot,
  1 x M.2 Gen4 x4 64Gbps slot,
  1 x M.2 Gen4 x2 32Gbps slot,
  4 x SATA 6Gbps ports
• Thunderbolt™ 4 1 x USB Type-C up to 40Gbps,
  Charging support up to 5V/3A, 15W
• USB ports 2 x USB 10Gbps (1 Type-A + 1 Type-C),
  7 x USB 5Gbps (6 Type-A + 1 Type-C),
  6 x USB 2.0
• LAN Intel® Killer™ E5000B 5Gbps LAN
• WiFi / BT Intel® Killer™ BE1750x Wi-Fi 7, Bluetooth 5.4
• Audio 8-Channel (7.1) HD Audio with Audio Boost

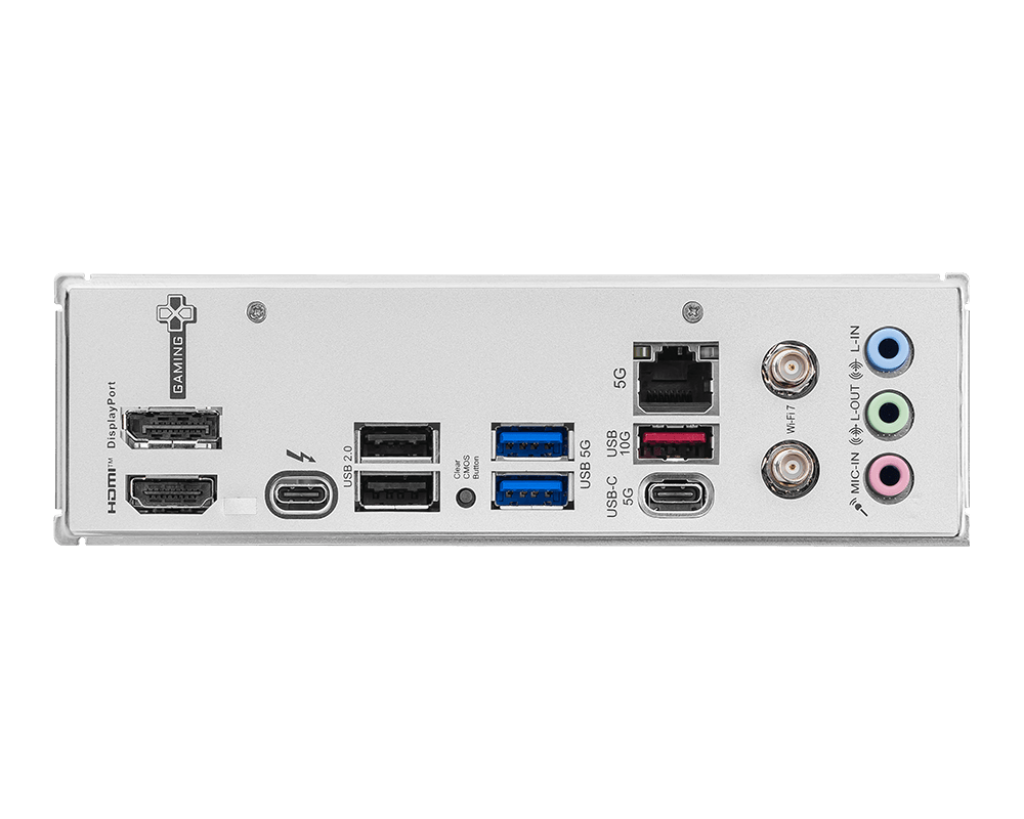

• CONNECTIONS

1. Display Port
2. 5G LAN
3. HD Audio Connectors
4. Thunderbolt 4 40Gbps (Type-C)
5. USB 5Gbps (Type-A)
6. USB 10Gbps (Type-A)
7. Clear CMOS Button
8. Wi-Fi / Bluetooth
9. HDMI™ 2.1 Port
10. USB 2.0
11. USB 5Gbps (Type-C)
